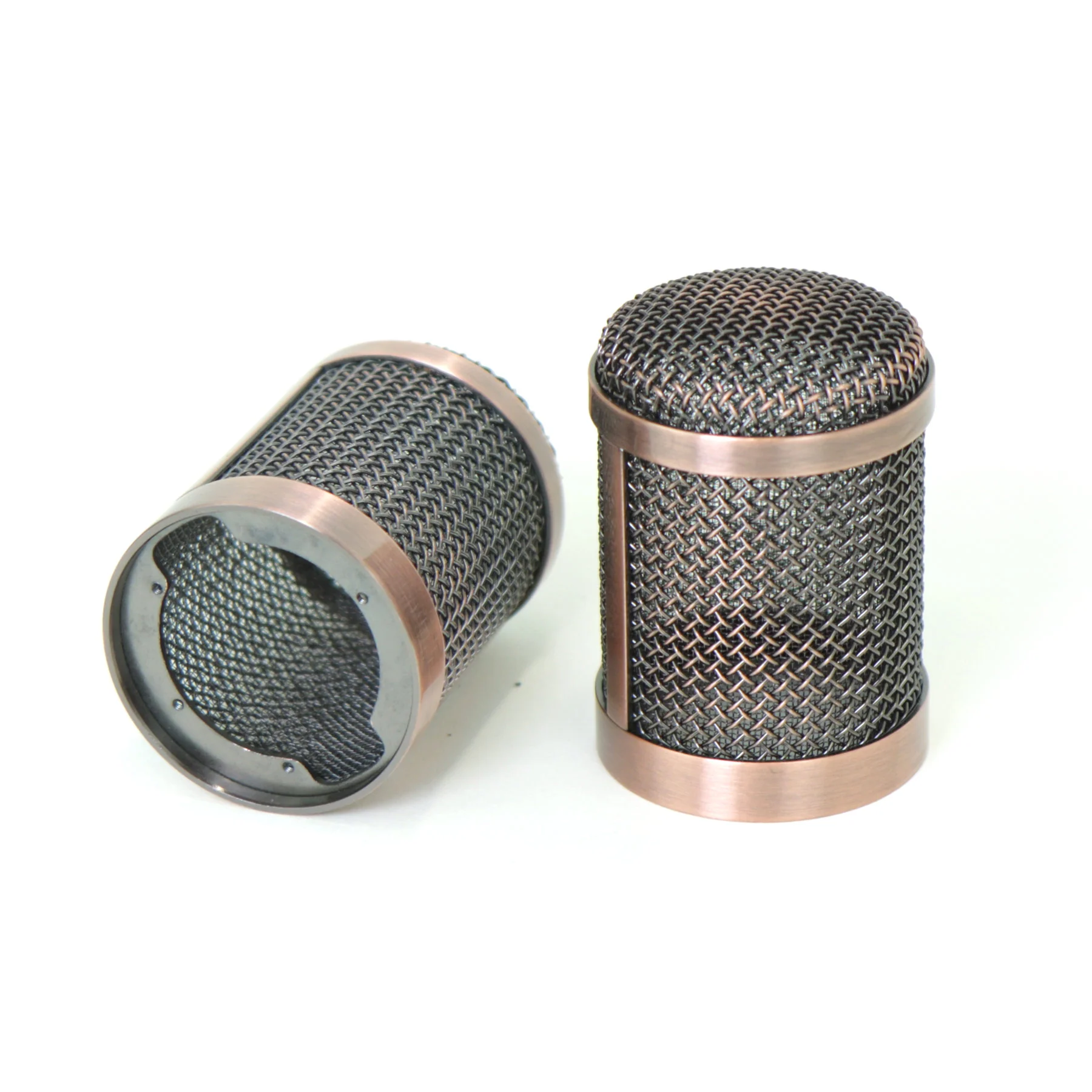

This microphone grille is made of 2-layer mesh, with a significantly more open weave than found in most microphone grilles. It has an antiqued copper finish.

Specifications

Outer diameter: 50mm
Inner diameter (max mic body diameter): 47.5mm
Height: 70mm
Approximate spacing of front and rear mounting holes: 37.5mm

Compatibility

MicParts LDC FET mic bodies for S- and T-series (e.g. S-87, T-12, T-67, etc)

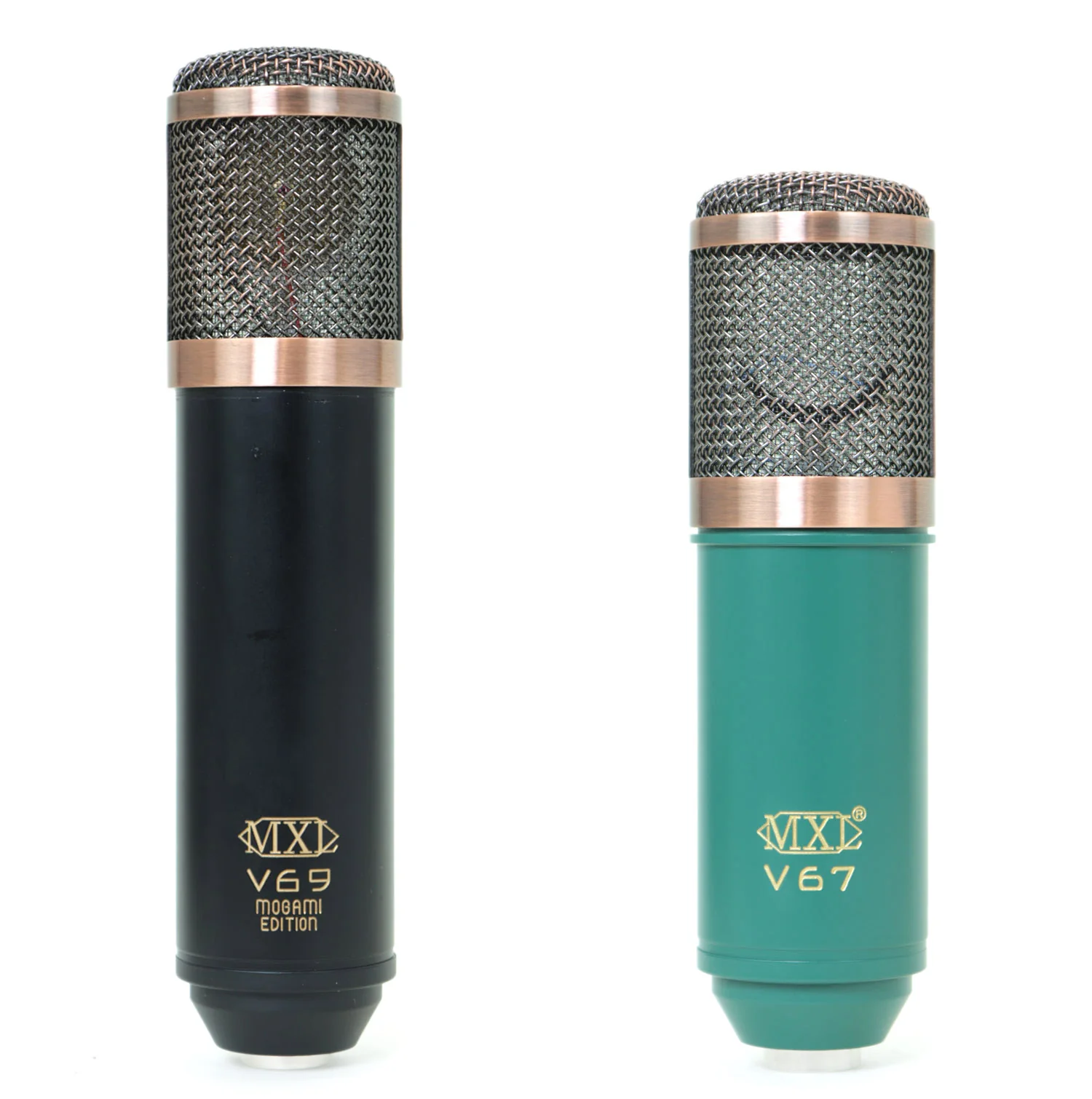

MXL V69 ME
MXL V67G

We have no further list of compatible mics. We will expand the above listing when we hear success stories from customers.

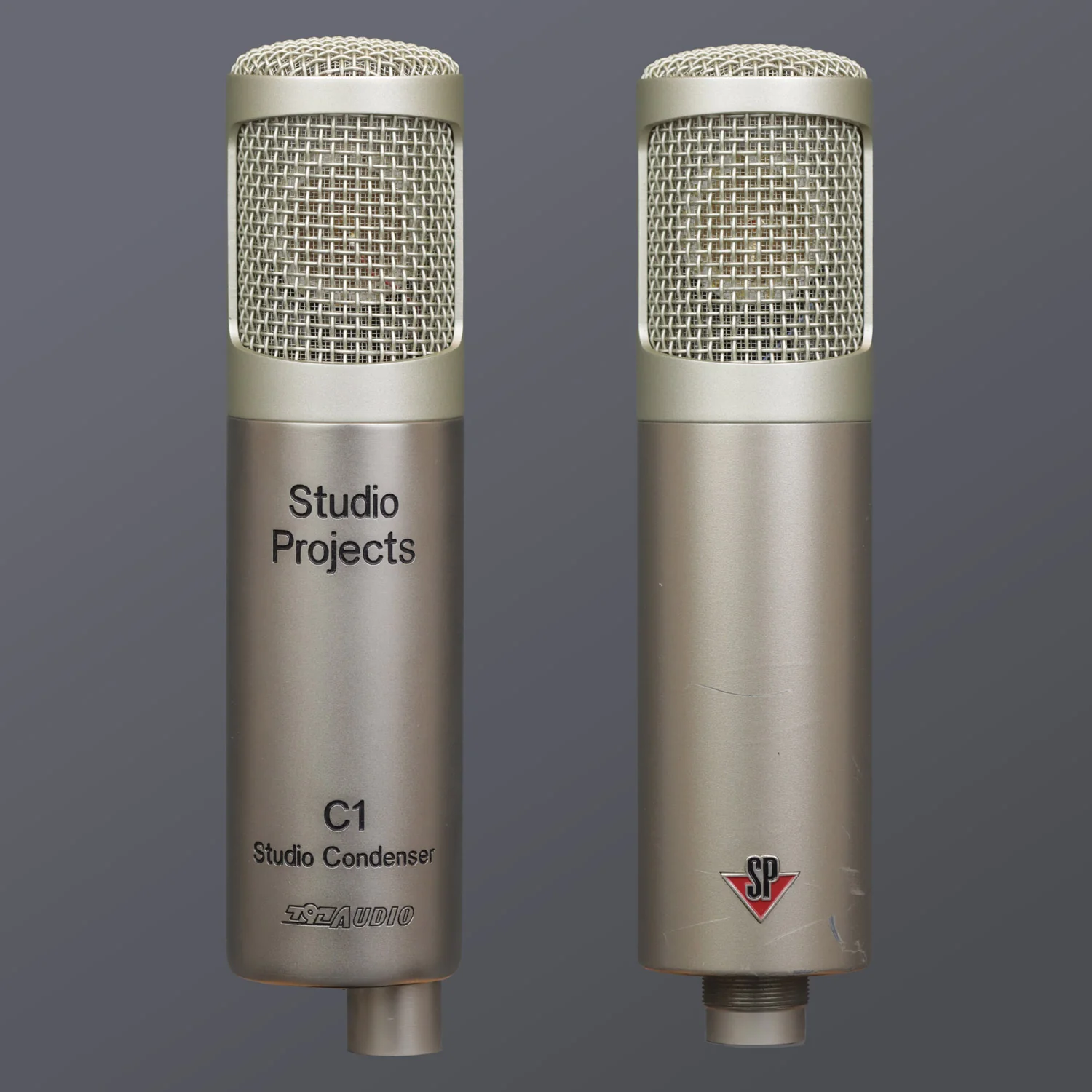

These grilles are likely not compatible with any microphone whose body diameter is smaller than 47mm or larger than 51mm. For example: this grille will not fit the Studio Projects C1, although we do have C1 grilles available.

Installation Notes

The grilles are drilled and tapped for 4 mounting holes. MXL mics typically use two mounting holes, located at the front and rear of the mic body. The MicParts chassis uses 3 mounting holes.

If your microphone uses some other arrangement, you might need to drill an

Grilles

Copper Microphone Grille

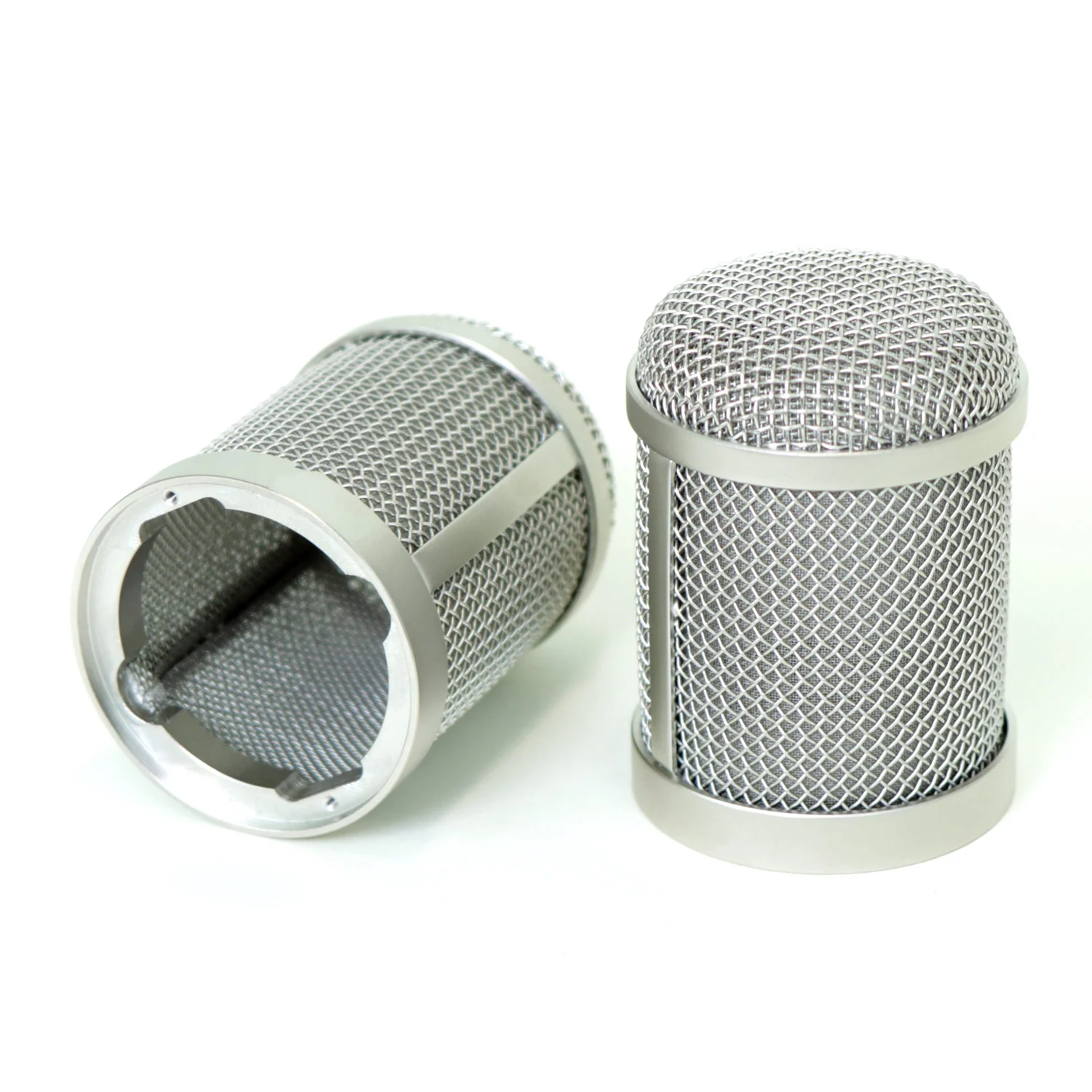

60mm Microphone Grille

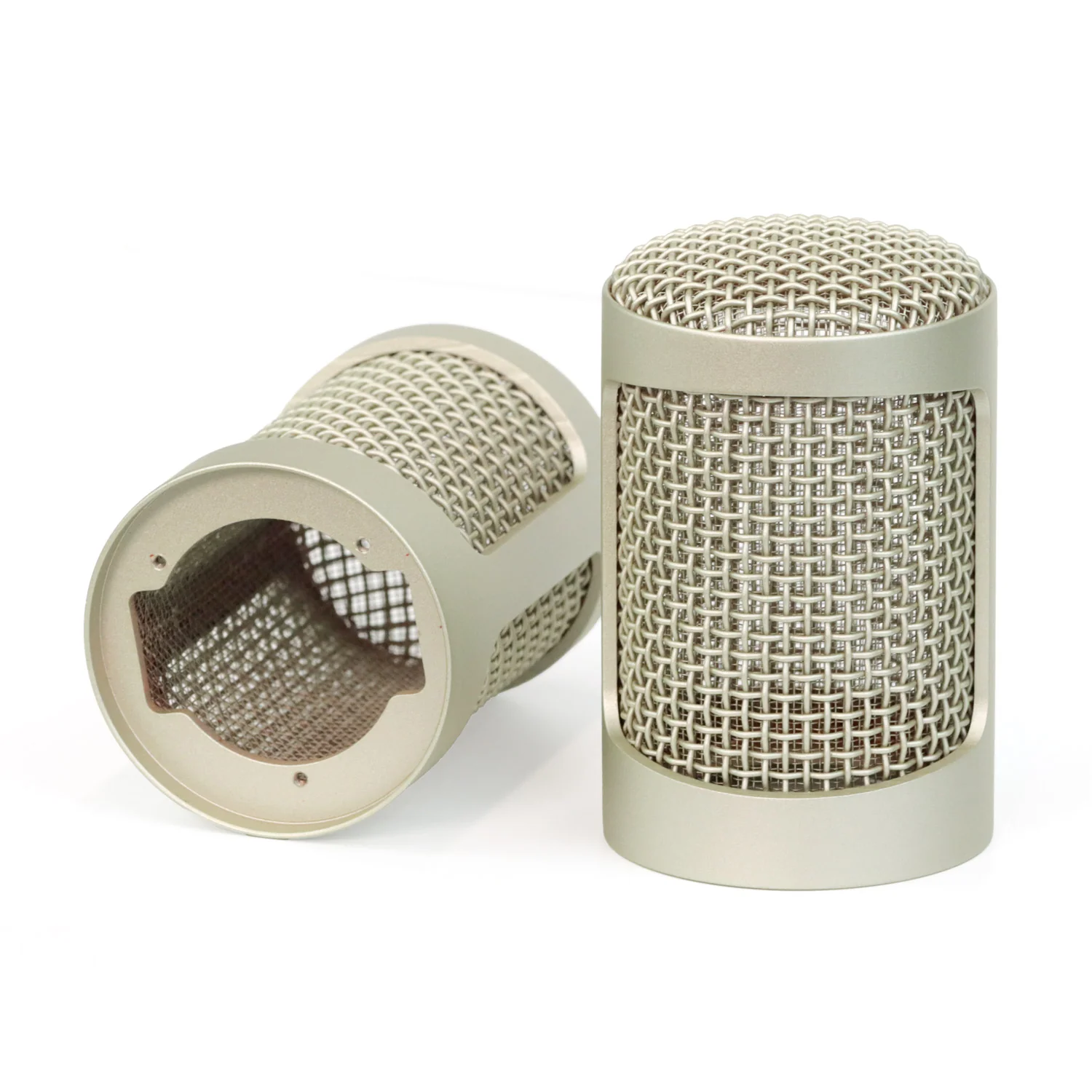

Studio Projects C1 Grille
